Influence of hydraulic retention time on municipal wastewater treatment using microalgae-bacteria flocs in sequencing batch reactors

https://doi.org/10.1016/j.biteb.2021.100884Get rights and content

Highlights

Real municipal wastewater was treated using indigenous microalgae-bacteria (MaB).

Above 90% of ammonium and phosphorus was removed.

Decrease of HRT from 3 days to 2 days improved the treatment quality.

High pH caused series of inhibition and collapse of the culture.

Due to pH inhibition, increase of HRT did not help the nitrogen removal.

Abstract

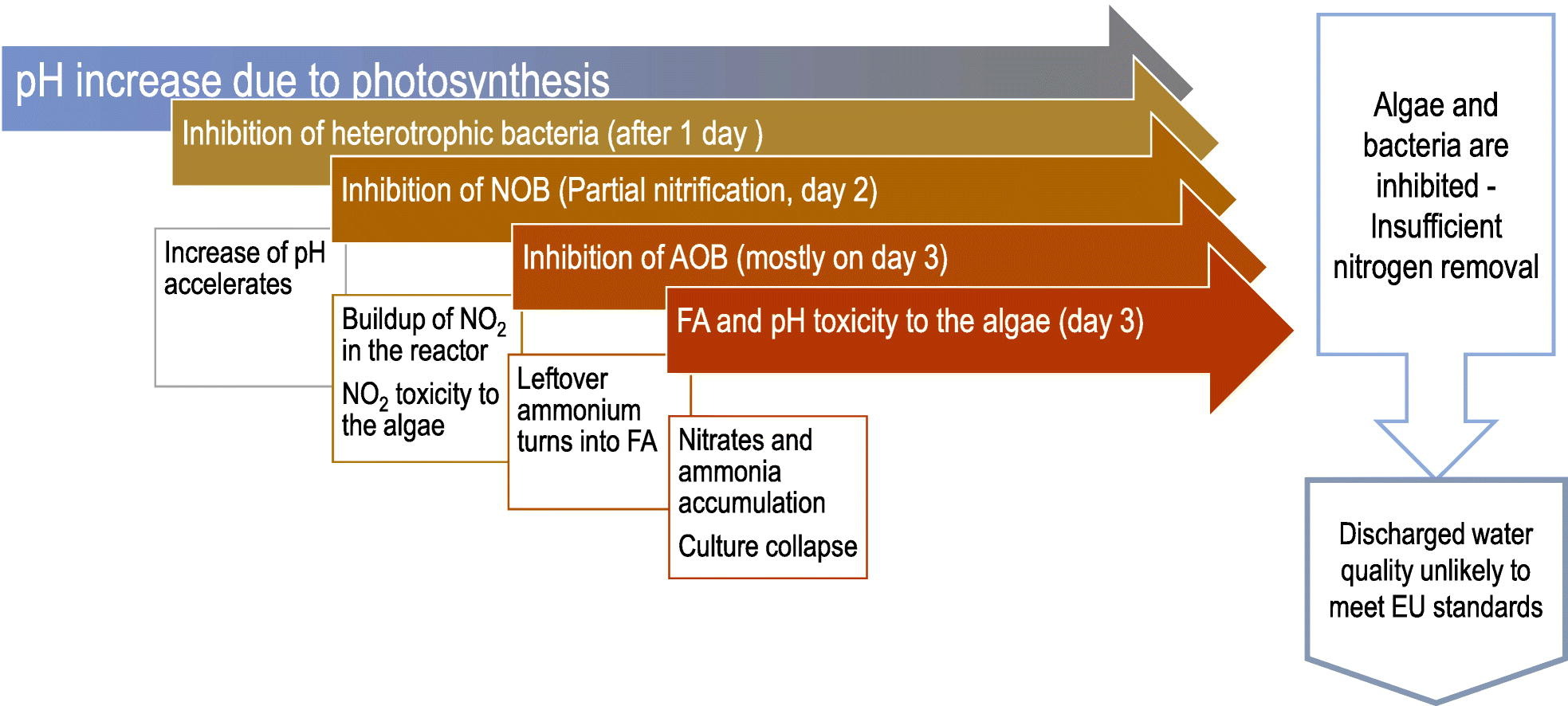

Real wastewater was treated with a consortium of indigenous microalgae and bacteria (MaB) in sequencing batch reactors (SBR) while the hydraulic retention time (HRT) reduced from of 3 days (5 batches) to 2 days (6 batches). Biomass uptake and nitrification were the main ammonium removal pathways (about 96% for both HRTs) and phosphate levels stayed within the European limit of 1 mg P L−1. The alkalization due to lack of inorganic carbon triggered free ammonia inhibition and partial nitrification. Consequently, the total nitrogen removal could not satisfy the EU standard. Extreme pH levels (pH > 9.5) occurred more frequently in the SBR with HRT of 3 days, leading to culture collapse and biomass washout. Maintaining the pH below 8.0 seems crucial for an efficient treatment. The pH of the SBR with HRT of 2 days was more moderate, making this HRT advantageous for the single-step MaB treatment of weak wastewaters.

Abbreviations

AOB
ammonia oxidizing bacteria
CAS
conventional activated sludge
DO
dissolved oxygen
DON
dissolved organic nitrogen
DW
dry weight
ECDS91
European Council Directive standard 91/271/EEC
EPS
extracellular polymeric substance
Exp.2d
a SBR of 6 batches with 2 days HRT
Exp.3d
a SBR of 5 batches with 3 days HRT
FA
free ammonia
GHG
greenhouse gas
HRT
hydraulic retention time
IC
inorganic carbon
MaB
microalgae-bacteria
NOB
nitrite oxidizing bacteria
NOx
nitrogen oxides (NO2 + NO3)
OC
organic carbon
p.e.
population equivalent
PAM
pulse-amplitude modulated
PAR
photosynthetically active radiation
PS
photosystem
SBR
sequencing batch reactor
SD
standard deviation
SRT
sludge retention time
SVI
sludge volume index
TAN
total ammonia nitrogen
TC
total carbon
TIC
total inorganic carbon
TN
total (dissolved) nitrogen
TSS
total suspended solids
VSS
volatile suspended solids
WWTP
wastewater treatment plants

Keywords

pH inhibition
ammonia inhibition
Nitrite accumulation
Inorganic carbon
Nitrogen removal
Nitrification
